Add Custom Checkbox on UITableViewCell or UITableView in Swift 4

Add Custom Checkbox

Introduction to how to add custom checkbox on UITableViewCell or UITableView in swift 4

In this tutorial, we are going to learn about how can we create or add custom checkbox on UITableViewCell or UITableView in swift and perform IBAction on our custom checkbox placed on UITableViewCell or UITableView in swift 4. We will place UIButton on UITableViewCell that will act as checkbox for our UITableViewCell in UITableView using swift 4. In the end of this tutorial, we will have output as shown in below picture

Learn how to create checkbox in swift from HERE

Steps to create or add custom checkbox on UITableViewCell or UITableView

Step 1 : Create a new Xcode project and select "Single View App" template. Name  project as "addCheckBoxonTable-Tutorial".

Step 2: Open "Main.storyboard" file and drag UITableView object on to the view. Then we will add constraints to UITableView so that it fits to our screen size. Please follow the steps as shown in the below picture

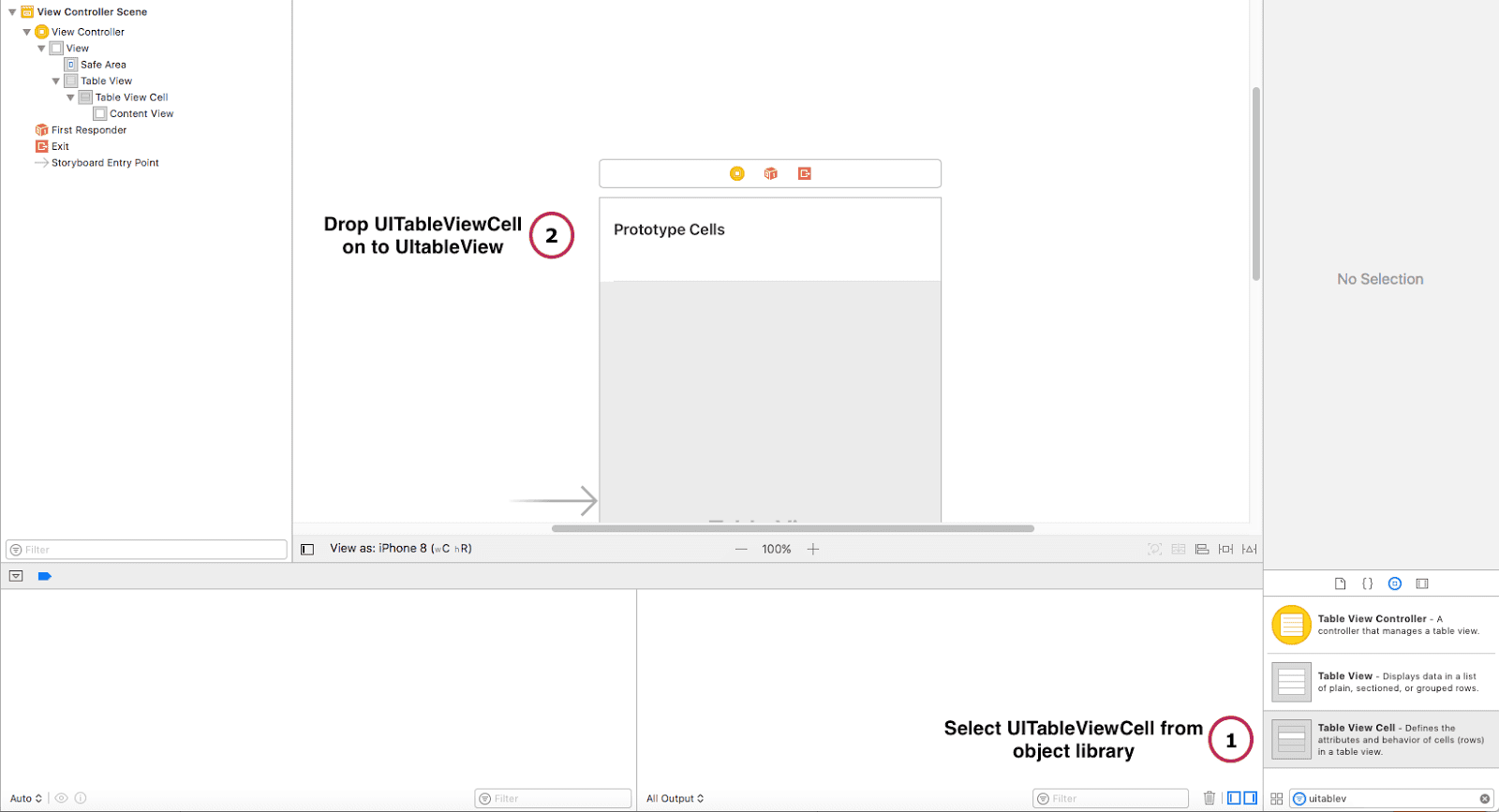

Step 3: Now we need to add UITableViewCell to our UITableView. Drag UItableViewCell on to UITableView, added in step 2.

Step 4: Select UITableViewCell and select option "Size inspector" (option will  be on right hand side of your screen) change the height to 100.0 and background color to yellow, will get it changed from "Attribute inspector". Also change the UITableView Row height to 100.0 also. Change UITableViewCell identifer ro "CheckBoxCell"

Step 6:  Drag UILable and UIButton (this UIButton will act as checkbox for our cell in UITableview) to content view of UITableViewCell. Add constraints to both object

• UILable constraint: (Top = 0, Bottom = 0, Leading = 10, Trailing = 10 w.r.t. UIButton)
• UIButton constraint: (Trailing = 10, height = 50, width = 50, align center Y to superview)

Step 7: Add images to your project. Download images from Archive-CheckBoximages.zip. Change UIButton type to custom and remove title. Set images to UIButton as follows

1. Default state - set image Checkmarkempty
2. Selected state - set image Checkmark

You can change state of UIButton by changing "State config" property in attribute inspector.

Step 8: Set tag for UILable  = 1 and for UIButton = 2. You will find this property under attribute inspector too.

Step 9: Open ViewController.swift. Here we will create IBOutlet for UITableView first and connect it with UITable in "Main.storyboard". Then we will write down UITableViewDatasource methods for our UITableView.  Below is the complete code for ViewController.swift file

	//
	// ViewController.swift
	// addCheckBoxonTable-Tutorial
	//
	// Created by Aman Aggarwal on 2/1/18.
	// Copyright © 2018 iostutorialpoint.com. All rights reserved.
	//
	import UIKit
	class ViewController: UIViewController, UITableViewDataSource {
	@IBOutlet weak var tblList: UITableView!
	override func viewDidLoad() {
	super.viewDidLoad()
	// Do any additional setup after loading the view, typically from a nib.
	tblList.dataSource = self
	}
	func tableView(_ tableView: UITableView, numberOfRowsInSection section: Int) -> Int {
	return 10
	}
	func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
	let cell = tableView.dequeueReusableCell(withIdentifier: "CheckBoxCell")
	if let lbl = cell?.contentView.viewWithTag(1) as? UILabel {
	lbl.text = "item-\(1)"
	}
	if let btnChk = cell?.contentView.viewWithTag(2) as? UIButton {
	btnChk.addTarget(self, action: #selector(checkboxClicked(_ :)), for: .touchUpInside)
	}
	return cell!
	}
	@objc func checkboxClicked(_ sender: UIButton) {
	sender.isSelected = !sender.isSelected
	}
	override func didReceiveMemoryWarning() {
	super.didReceiveMemoryWarning()
	// Dispose of any resources that can be recreated.
	}
	}

In above code, we write down UITabelViewDataSource methods. numberOfRows and cellForRow,in cellForRow we get UILabel using the tags we set in prototype cell, same for UIButton. Lastly, we add target to UIButton. In the selector, we set sender selected property to the opposite of its  current elected property. In more clear word if UIButton has state not selected (state other than selected state) then we make it selected and vice-versa.

Where to go from here

In this tutorial, we learned how to add checkbox on UITableViewCell in swift 4. We use UIButton to act as custom checkbox and then ad target to it in cellForRow method. You can grab the copy of source code from addCheckBoxonTable-Tutorial.zip.
